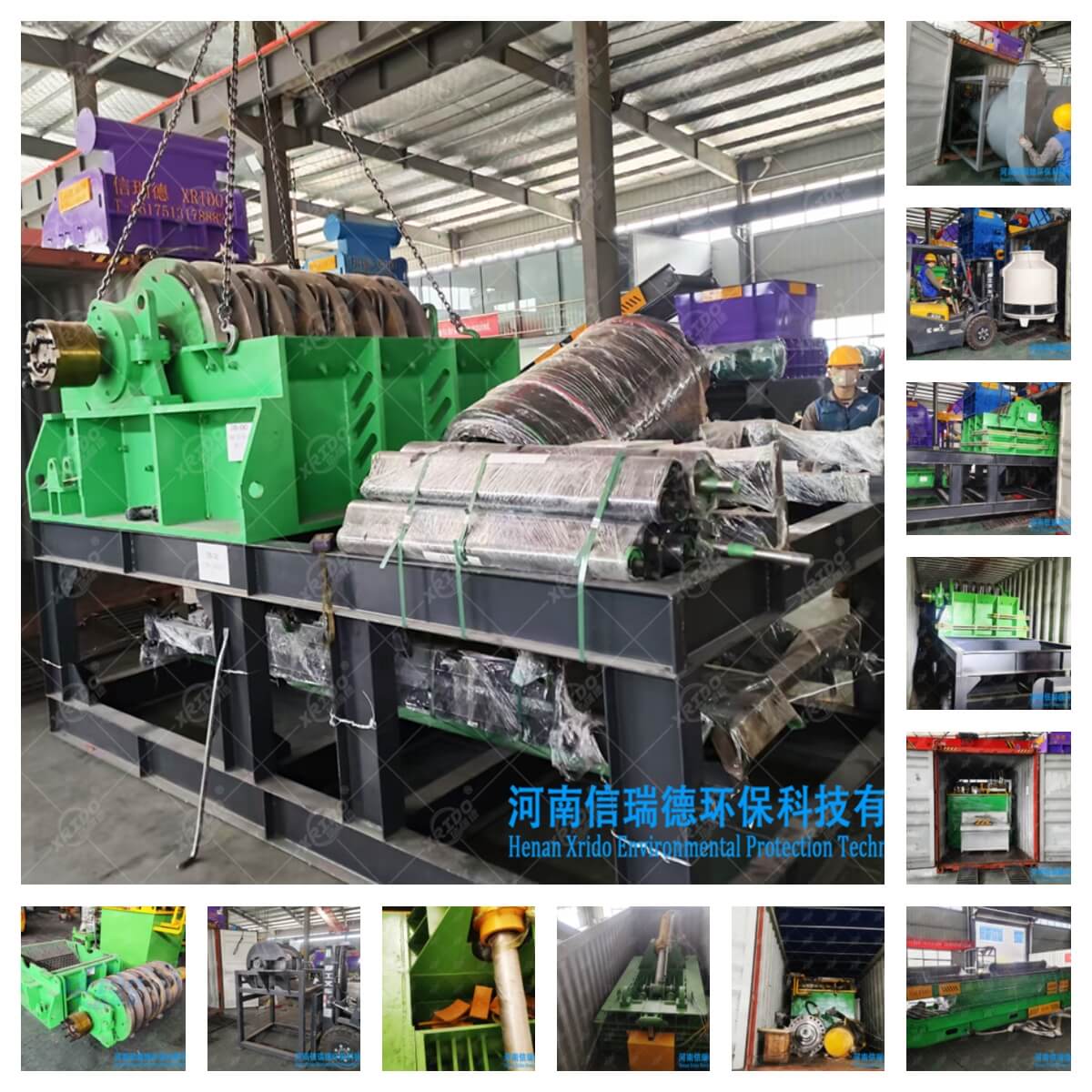

Malaysia Project-Scrap Steel Crushing and Recycling Production Line Transportation and Delivery
Malaysia Project – Scrap Steel Crushing and Recycling Production Line Transportation and Delivery

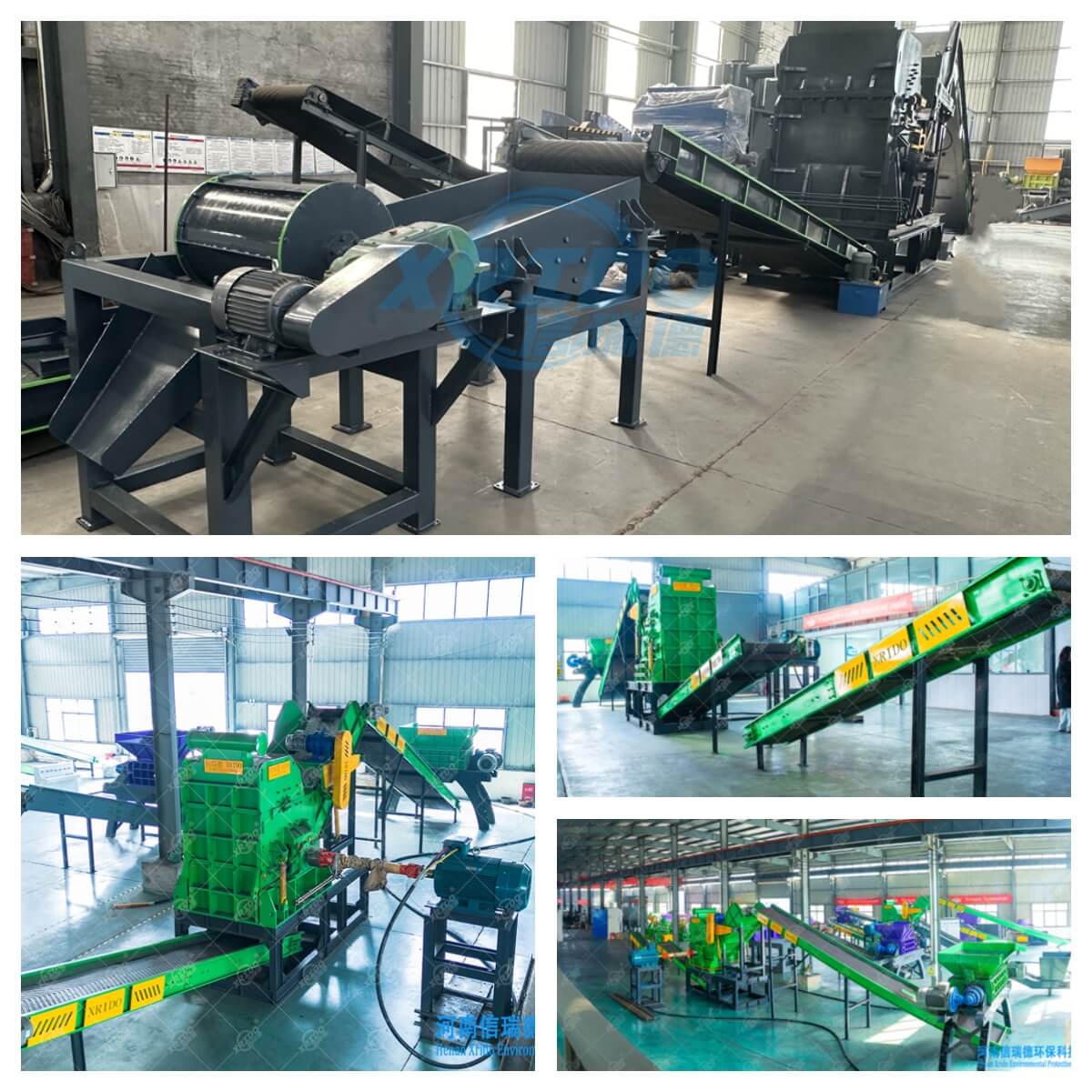

Scrap Steel Crushing Production Line – Intelligent Disassembly, High Purity Recycling, Ton of Steel Benefit Improvement Expert
From scrap to high-purity furnace charge, cost reduction of 35%, metal recovery rate ≥ 98%
Core modules of production line
1. Intelligent pretreatment section
Double chain conveyor: magnetic separation of iron materials, anti-winding design
Drum shredder (optional hydraulic unpacking knife): crushing 2000mm×1500mm blocks, processing capacity 4 0-80 tons/hour
Eddy current separator: precise ejection of nonferrous metals (copper/aluminum/zinc), purity>95%
2. Main crushing system
Heavy hammer crusher:
Customized manganese steel hammer head (impact toughness ≥150J/cm²)
360° rotating strike + grid particle size control, discharge 30-150mm adjustable
Multi-layer vibrating screen: three-level screening (>80mm recycled material | 30-80mm high-quality crushed material | <30mm debris)
3. Environmental protection purification center
Pulse bag dust removal: 120,000 m³/h air volume, dust emission <20mg/Nm³
Spray noise reduction room: fully enclosed equipment + sound barrier, factory boundary noise ≤65dB(A)
Sewage circulation system: oil-water separation + reverse osmosis treatment to achieve zero emissions
Application scenarios
1. Scrapped car dismantling base 2. Steel plant affiliated scrap steel processing center
3. Port imported scrap steel processing 4. Large-scale renewable resource industrial park
For customers with scrap steel processing needs, please contact us for solutions and quotes!
